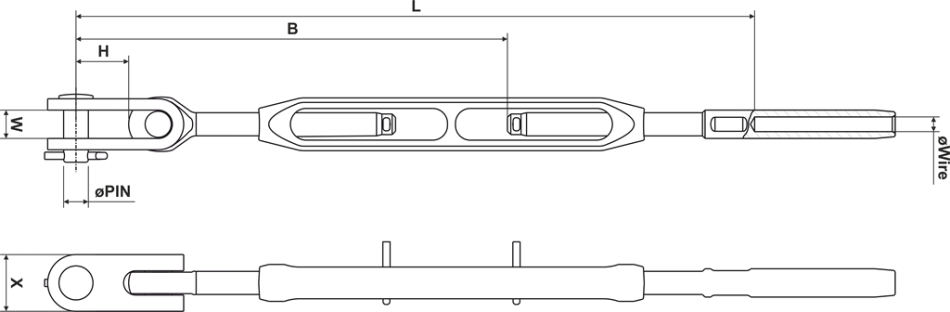

BRONZE RIGGING SCREWS
STUD/ TOGGLE
| Item No | Wire diam (mm) | Thread size | Clevis pin Ø (mm) | LMIN (mm) | LMAX (mm) | W (mm) | H (mm) | X (mm) | Breaking Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 1/4" | 6.50 | 156 | 227 | 7 | 15 | 14 | 1550 | |
| 4 | 1/4" | 6.50 | 153 | 224 | 7 | 15 | 14 | 1550 | |
| 4 | 5/16" | 8.00 | 180 | 262 | 8 | 18 | 16 | 2450 | |
| 5 | 5/16" | 8.00 | 195 | 277 | 8 | 18 | 16 | 2450 | |
| 5 | 3/8" | 9.50 | 226 | 328 | 10 | 21 | 20 | 3450 | |
| 6 | 3/8" | 9.50 | 224 | 326 | 10 | 21 | 20 | 3450 | |
| 6 | 7/16" | 11.00 | 251 | 375 | 12 | 23 | 25 | 4750 | |
| 7 | 7/16" | 11.00 | 258 | 382 | 12 | 23 | 25 | 4750 | |
| 7 | 1/2" | 13.00 | 292 | 440 | 14 | 29 | 28 | 6200 | |
| 8 | 1/2" | 13.00 | 287 | 435 | 14 | 29 | 28 | 6200 | |
| 8 | 5/8" | 15.70 | 338 | 512 | 18 | 40 | 34 | 9500 | |
| 10 | 5/8" | 15.70 | 341 | 515 | 18 | 40 | 34 | 9500 | |
| 10 | 3/4" | 15.80 | 402 | 610 | 22 | 41 | 39 | 12500 | |
| 12 | 3/4" | 15.80 | 402 | 610 | 22 | 41 | 39 | 12500 | |
| 10 | 3/4" | 19.00 | 402 | 610 | 22 | 41 | 39 | 12500 | |
| 12 | 3/4" | 19.00 | 402 | 610 | 22 | 41 | 39 | 12500 | |
| 12 | 7/8" | 19.00 | 483 | 725 | 23 | 55 | 47 | 18000 | |
| 14 | 7/8" | 19.00 | 491 | 733 | 23 | 55 | 47 | 18000 | |
| 12 | 7/8" | 22.00 | 483 | 725 | 23 | 55 | 47 | 18000 | |
| 14 | 7/8" | 22.00 | 491 | 733 | 23 | 55 | 47 | 18000 | |
| 14 | 1" | 25.00 | 626 | 922 | 28 | 60 | 60 | 28000 | |
| 16 | 1" | 25.00 | 626 | 922 | 28 | 60 | 60 | 28000 | |
| 14 | 1" | 22.00 | 626 | 922 | 28 | 60 | 60 | 28000 | |
| 16 | 1" | 22.00 | 626 | 922 | 28 | 60 | 60 | 28000 | |
| 19 | 1¼" | 29.00 | 694 | 1028 | 31 | 70 | 74 | 32000 |
