BRONZE RIGGING SCREWS

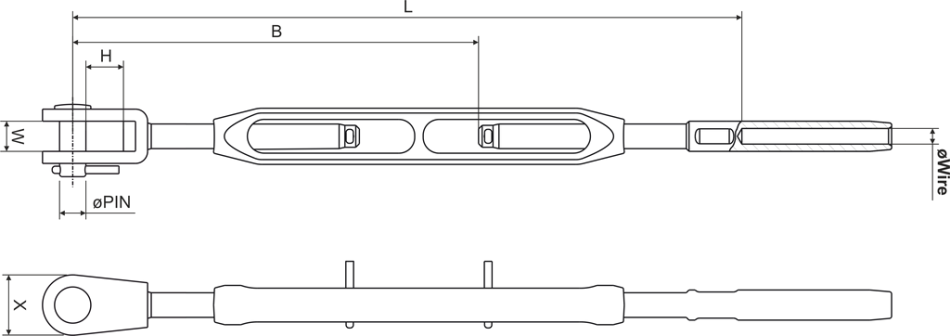

FORK / STUD
| Item No | Wire diam (mm) | Thread size | Clevis pin Ø (mm) | LMIN (mm) | LMAX (mm) | W (mm) | H (mm) | X (mm) | Breaking Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 1/4" | 6.50 | 142 | 213 | 7.50 | 12.00 | 14 | 1550 | |
| 4 | 1/4" | 6.50 | 139 | 210 | 7.50 | 12.00 | 14 | 1550 | |
| 4 | 5/16" | 8.00 | 163 | 245 | 9.00 | 15.00 | 16 | 2450 | |
| 5 | 5/16" | 8.00 | 178 | 260 | 9.00 | 15.00 | 16 | 2450 | |
| 5 | 3/8" | 9.50 | 203 | 305 | 10.50 | 21.00 | 20 | 3450 | |
| 6 | 3/8" | 9.50 | 201 | 303 | 10.50 | 21.00 | 20 | 3450 | |
| 6 | 7/16" | 11.00 | 229 | 353 | 12.50 | 21.00 | 25 | 4750 | |
| 7 | 7/16" | 11.00 | 236 | 360 | 12.50 | 21.00 | 25 | 4750 | |
| 7 | 1/2" | 13.00 | 266 | 414 | 14.50 | 25.00 | 28 | 6200 | |
| 8 | 1/2" | 13.00 | 261 | 409 | 14.50 | 25.00 | 28 | 6200 | |
| 8 | 5/8" | 15.80 | 161 | 331 | 18.00 | 31.50 | 34 | 9500 | |
| 10 | 5/8" | 15.80 | 162 | 310 | 18.00 | 31.50 | 34 | 9500 | |
| 10 | 3/4" | 15.80 | 360 | 568 | 22.00 | 32.00 | 39 | 12500 | |
| 12 | 3/4" | 15.80 | 360 | 568 | 22.00 | 32.00 | 39 | 12500 | |
| 10 | 3/4" | 19.00 | 360 | 568 | 22.00 | 32.00 | 39 | 12500 | |
| 12 | 3/4" | 19.00 | 360 | 568 | 22.00 | 32.00 | 39 | 12500 | |
| 12 | 7/8" | 19.00 | 431 | 673 | 22.00 | 46.00 | 50 | 18000 | |
| 14 | 7/8" | 19.00 | 439 | 681 | 22.00 | 46.00 | 50 | 18000 | |
| 12 | 7/8" | 22.00 | 431 | 673 | 22.00 | 46.00 | 50 | 18000 | |
| 14 | 7/8" | 22.00 | 439 | 681 | 22.00 | 46.00 | 50 | 18000 |
