BRONZE RIGGING SCREWS

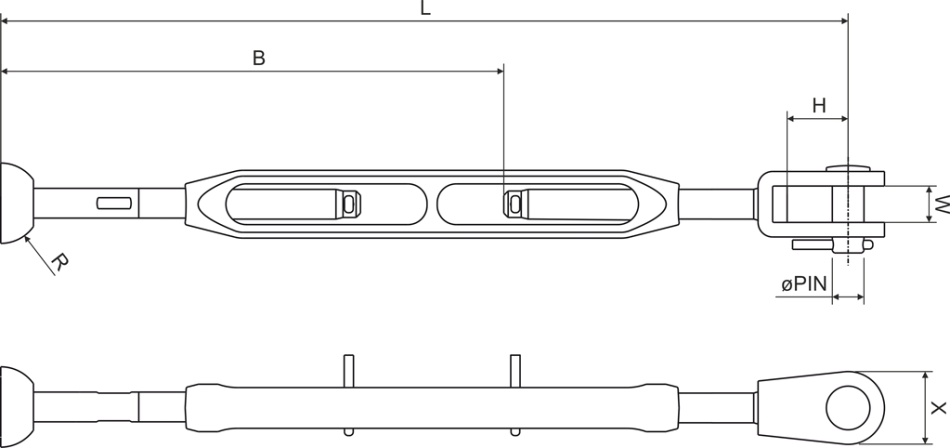

STEMBALL / FORK
| Item No | Thread size | R (mm) | Clevis pin Ø (mm) | LMIN (mm) | LMAX (mm) | W (mm) | H (mm) | X (mm) | Breaking Load (kg) |
|---|
| 174-321-34 | 1/4" | 9 | 6.50 | 157 | 228 | 7.50 | 12.00 | 14 | 1550 |
| 174-321-35 | 1/4" | 11 | 6.50 | 157 | 228 | 7.50 | 12.00 | 14 | 1550 |
| 174-322-34 | 5/16" | 9 | 8.00 | 186 | 268 | 9.00 | 15.00 | 16 | 2450 |
| 174-322-35 | 5/16" | 11 | 8.00 | 186 | 268 | 9.00 | 15.00 | 16 | 2450 |
| 174-322-36 | 5/16" | 14 | 8.00 | 186 | 268 | 9.00 | 15.00 | 16 | 2450 |
| 174-323-34 | 3/8" | 11 | 9.50 | 212 | 314 | 10.50 | 18.00 | 20 | 3450 |
| 174-323-35 | 3/8" | 14 | 9.50 | 212 | 314 | 10.50 | 18.00 | 20 | 3450 |
| 174-324-34 | 7/16" | 11 | 11.00 | 249 | 373 | 12.50 | 21.00 | 25 | 4750 |
| 174-324-35 | 7/16" | 14 | 11.00 | 249 | 373 | 12.50 | 21.00 | 25 | 4750 |
| 174-325-34 | 1/2" | 11 | 13.00 | 280 | 428 | 14.50 | 25.00 | 28 | 6200 |
| 174-325-35 | 1/2" | 14 | 13.00 | 280 | 428 | 14.50 | 25.00 | 28 | 6200 |
| 174-326-34 | 5/8" | 14 | 15.80 | 327 | 501 | 18.00 | 32.00 | 34 | 9500 |
