BRONZE RIGGING SCREWS

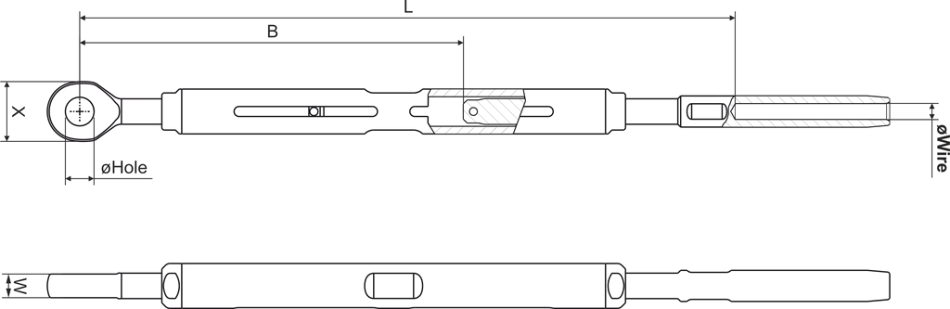

EYE / TERMINAL
Item No | Wire diam (mm) | SubType | Thread size | Hole (mm) | LMIN (mm) | LMAX (mm) | BMIN (mm) | BMAX (mm) | W (mm) | X (mm) | Breaking Load (kg) | Body Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|
3 | Bronze | 1/4" | 6.50 | 134 | 205 | 62 | 133 | 13 | 5 | 1550 | bronze | |
4 | Bronze | 1/4" | 6.50 | 131 | 202 | 62 | 133 | 13 | 5 | 1550 | bronze | |
4 | Bronze | 5/16" | 8.30 | 153 | 235 | 77 | 159 | 16 | 6 | 2450 | bronze | |
5 | Bronze | 5/16" | 8.00 | 167 | 249 | 77 | 159 | 16 | 6 | 2450 | bronze | |
5 | Bronze | 3/8" | 10.50 | 193 | 295 | 93 | 195 | 20 | 8 | 3450 | bronze | |
6 | Bronze | 3/8" | 10.50 | 191 | 293 | 93 | 195 | 20 | 8 | 3450 | bronze | |
6 | Bronze | 7/16" | 11.50 | 215 | 339 | 106 | 230 | 24 | 9 | 4750 | bronze | |
7 | Bronze | 7/16" | 11.50 | 222 | 346 | 106 | 230 | 24 | 9 | 4750 | bronze | |
7 | Bronze | 1/2" | 13.50 | 248 | 396 | 118 | 266 | 27 | 10 | 6200 | bronze | |
8 | Bronze | 1/2" | 13.50 | 243 | 391 | 118 | 266 | 27 | 10 | 6200 | bronze | |
8 | Bronze | 5/8" | 16.50 | 279 | 453 | 138 | 312 | 32 | 14 | 9500 | bronze | |
10 | Bronze | 5/8" | 16.50 | 282 | 456 | 138 | 312 | 32 | 14 | 9500 | bronze | |
10 | Bronze | 3/4" | 19.50 | 340 | 548 | 169 | 377 | 36 | 17 | 12500 | bronze | |
12 | Bronze | 3/4" | 19.50 | 340 | 548 | 169 | 377 | 36 | 17 | 12500 | bronze | |
12 | Bronze | 7/8" | 22.50 | 403 | 645 | 198 | 440 | 41 | 19 | 18000 | bronze | |
14 | Bronze | 7/8" | 22.50 | 411 | 653 | 198 | 440 | 41 | 19 | 18000 | bronze |
