BRONZE RIGGING SCREWS

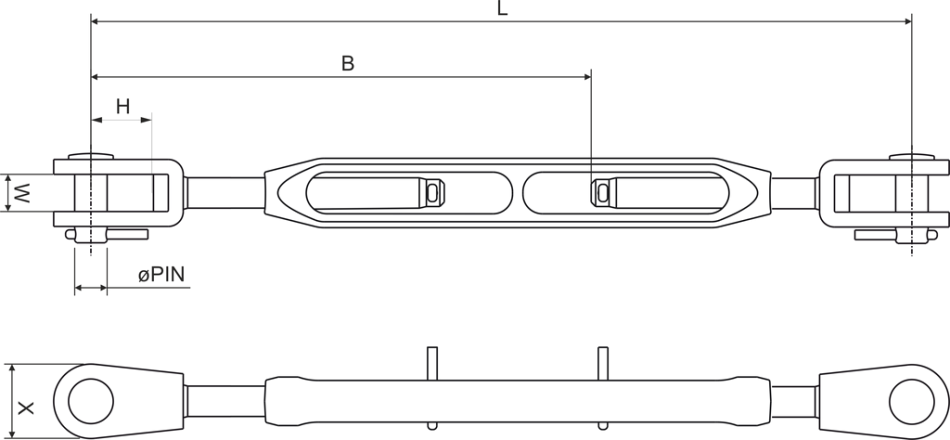

FORK / FORK
| Item No | Thread size | Clevis pin Ø (mm) | LMIN (mm) | LMAX (mm) | BMIN (mm) | BMAX (mm) | W (mm) | H (mm) | X (mm) | Breaking Load (kg) |
|---|
| 174-321-01 | 1/4" | 6.50 | 137 | 208 | 70 | 141 | 7.50 | 12.00 | 14 | 1550 |
| 174-322-01 | 5/16" | 8.00 | 165 | 247 | 88 | 170 | 9.00 | 15.00 | 16 | 2450 |
| 174-323-01 | 3/8" | 9.50 | 197 | 299 | 103 | 205 | 10.50 | 18.00 | 20 | 3450 |
| 174-324-01 | 7/16" | 11.00 | 232 | 356 | 120 | 244 | 12.50 | 21.00 | 25 | 4750 |
| 174-325-01 | 1/2" | 13.00 | 268 | 415 | 136 | 284 | 14.50 | 25.00 | 28 | 6200 |
| 174-326-01 | 5/8" | 15.80 | 319 | 493 | 162 | 319 | 18.00 | 32.00 | 34 | 9500 |
| 174-327-01 | 3/4" | 15.80 | 371 | 579 | 189 | 397 | 22.00 | 32.00 | 39 | 12500 |
| 174-327-02 | 3/4" | 19.00 | 371 | 579 | 189 | 397 | 22.00 | 32.00 | 39 | 12500 |
| 174-328-01 | 7/8" | 19.00 | 444 | 686 | 226 | 468 | 22.00 | 45.00 | 50 | 18000 |
| 174-328-02 | 7/8" | 22.00 | 444 | 686 | 226 | 468 | 22.00 | 45.00 | 50 | 18000 |
| Item No | Thread size | Clevis pin Ø (mm) | LMIN (mm) | LMAX (mm) | W (mm) | H (mm) | X (mm) | Breaking Load (kg) |
|---|
| 174-329-50 | 1" | 22.00 | 984 | 688 | 28 | 60.00 | 60 | 28000 |
| 174-329-51 | 1" | 25.00 | 984 | 688 | 28 | 60.00 | 60 | 28000 |
| 174-331-50 | 1 ¼ | 29.00 | 1128 | 794 | 31 | 70.00 | 74 | 32000 |
