RIDOIRS BRONZE
EMBOUT À BOULE / OUVERT

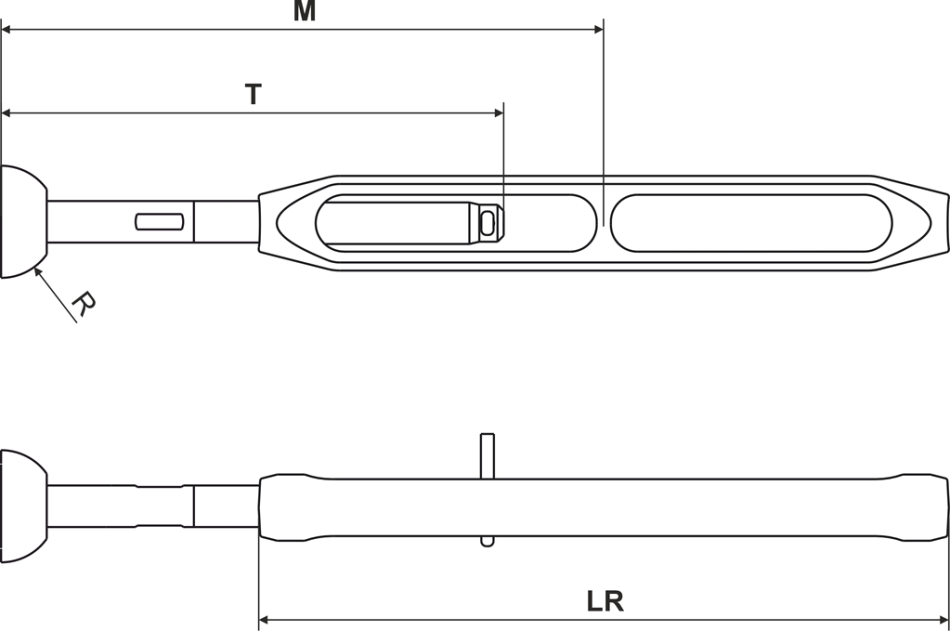

| Item No | BodyType | Thread size | MMIN (mm) | MMAX (mm) | LR (mm) | T (mm) | Stemball size (R) | Breaking Load (kg) |
|---|
| 174-321-18 | Open/Stemball | 1/4" | 88 | 124 | 97 | 87 | 9 | 1550 |
| 174-321-19 | Open/Stemball | 1/4" | 88 | 124 | 97 | 87 | 11 | 1550 |
| 174-322-18 | Open/Stemball | 5/16" | 103 | 144 | 120 | 98.4 | 9 | 2450 |
| 174-322-19 | Open/Stemball | 5/16" | 103 | 144 | 120 | 98.4 | 11 | 2450 |
| 174-322-20 | Open/Stemball | 5/16" | 103 | 144 | 120 | 98.4 | 14 | 2450 |
| 174-323-18 | Open/Stemball | 3/8" | 114 | 165 | 145 | 109.4 | 11 | 3450 |
| 174-323-19 | Open/Stemball | 3/8" | 114 | 165 | 145 | 109.4 | 14 | 3450 |
| 174-324-18 | Open/Stemball | 7/16" | 133 | 195 | 170 | 128.5 | 11 | 4750 |
| 174-324-19 | Open/Stemball | 7/16" | 133 | 195 | 170 | 128.5 | 14 | 4750 |
| 174-325-18 | Open/Stemball | 1/2" | 146 | 220 | 195 | 143.5 | 11 | 6200 |
| 174-325-19 | Open/Stemball | 1/2" | 146 | 220 | 195 | 143.5 | 14 | 6200 |
| 174-326-18 | Open/Stemball | 5/8" | 168 | 255 | 230 | 164.7 | 14 | 9500 |
