SELDÉN
FORK
TERMINALS
TERMINAL FORK WIRE Ø4 ASSY
308-312-01
TERM.FORK ø4 ASSY
Specifications

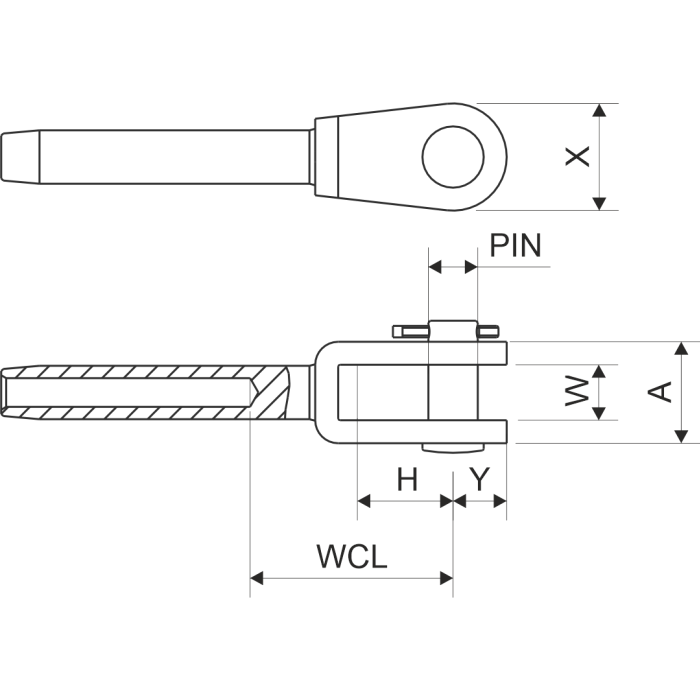

Weight: 50.00 g SubType: ForkTerminal Wire diameter: 4 mm Pin diam: 8.00 mm W: 16.00 mm WCL Reduct: 29.00 mm X: 9.00 mm Y: 8.00 mm Z: 15.00 mm A: 17.00 mm |
