LOW FRICTION SHACKLES
LOW FRICTION SHACKLE

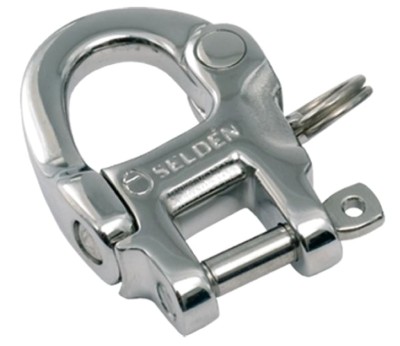

This new snap shackle has a big, well rounded loop allowing the rope to slide with low friction. Compared to a regular snatch block, this shackle is lighter, easier to operate and lower cost. Typical applications are barber haulers for spinnaker and jibs but also to tension a Seldén CX with 2:1 purchase. This not only makes for better perform ance but it also makes it easier to connect the Seldén CX to a bowsprit, from the foredeck.
| Item No | SWL (kg) | BRL (kg) | ØPin (mm) | W (mm) | L (mm) | Width (mm) | Height (mm) | ØA (mm) | ØB (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 900 | 1800 | 5 | 12 | 6 | 34 | 51 | 14 | ||
| 1500 | 3000 | 6 | 13 | 6 | 41 | 61 | 16 | ||
| 2500 | 5000 | 10 | 18 | 7 | 53 | 81 | 22 | ||
| 4000 | 8000 | 12 | 22 | 9 | 66 | 100 | 26 |
