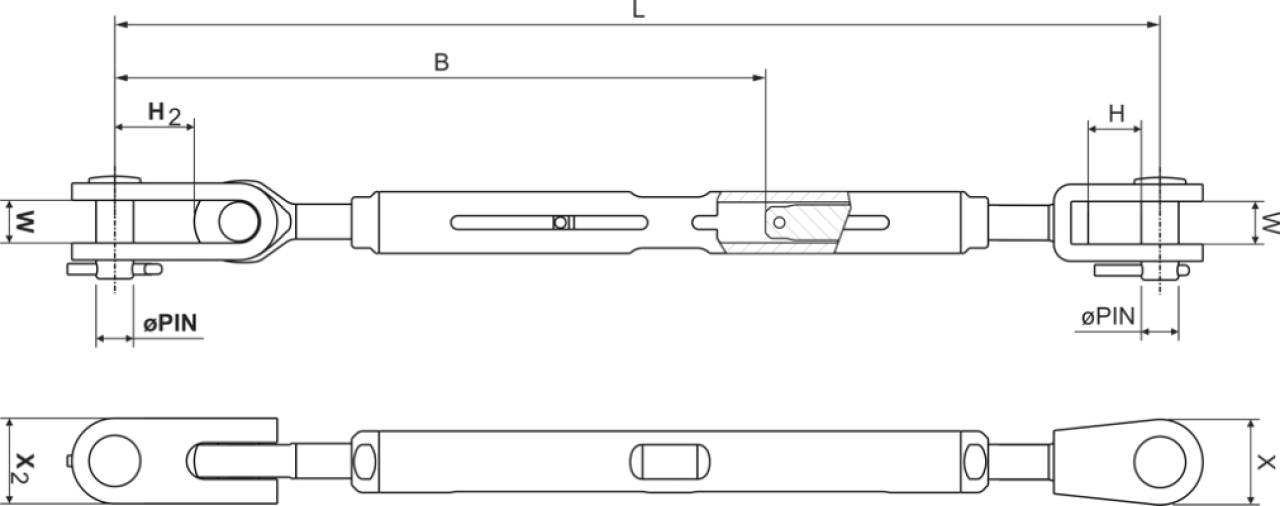

Fork / Toggle
| Item No | Thread size | Clevis pin Ø (mm) | LMIN (mm) | LMAX (mm) | W (mm) | H (mm) | X (mm) | W2 (mm) | H2 (mm) | X2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 6.50 | 158 | 219 | 7.50 | 12.00 | 14 | 7.50 | 15.00 | 14 | |
| 5/16" | 8.00 | 186 | 252 | 9.00 | 15.00 | 16 | 9.00 | 18.00 | 16 | |
| 3/8" | 9.50 | 228 | 312 | 11.10 | 18.00 | 20 | 10.50 | 21.00 | 20 | |
| 7/16" | 11.00 | 270 | 374 | 13.00 | 21.00 | 25 | 12.50 | 23.00 | 25 | |
| 1/2" | 13.00 | 311 | 438 | 14.50 | 25.00 | 28 | 14.50 | 29.00 | 28 | |
| 5/8" | 15.80 | 375 | 521 | 18.00 | 31.50 | 34 | 18.00 | 40.00 | 34 | |
| 3/4" | 15.80 | 442 | 614 | 22.00 | 31.80 | 39 | 22.00 | 41.30 | 39 | |
| 3/4" | 19.00 | 442 | 614 | 22.00 | 31.80 | 39 | 22.00 | 41.30 | 39 | |
| 7/8" | 19.00 | 523 | 733 | 23.00 | 46.00 | 47 | 22.00 | 54.50 | 50 | |
| 7/8" | 22.00 | 523 | 733 | 23.00 | 46.00 | 47 | 22.00 | 54.50 | 50 |
