MANUAL RATCHET BLOCKS



Seldén's latest series of ratchet blocks features a more efficient grip between the sheave and the line, as well as a more ergonomic swivel control. These blocks are used for dynamic applications such as sheets on dinghies and keelboats, and when the locking function is activated, the sheave remains stationary if you ease the load on the sheet slightly. This allows you to hold the sheet in your hand for an extended period and trim dynamically without needing to lock the sheet in a cam cleat. The blocks have Delrin bearings and are available with either a composite or aluminum sheave. The aluminum sheave provides a good grip even when used with a relatively thin line.





TECHNICIAL FEATURES r60

  • ø5 mm ball bearings in Delrin
  • Ø60 mm in aluminium or carbon reinforces Polyetheramide.

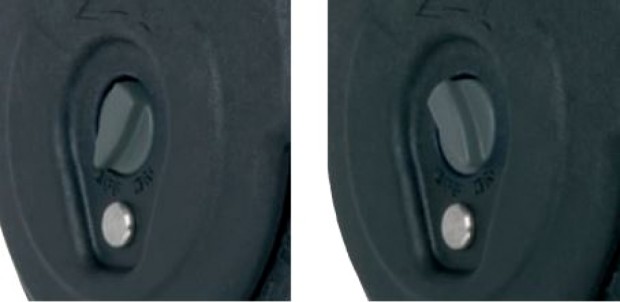

  • Manual switch for selecting the locking function or free-spinning sheave.
  • An insert washer between the block and the shackle is used to locate the shackle at 0° or 90°.  When removed the shackle spins freely.

406-350-01R, R60 Single, ratchet
406-350-01
R60 Single, ratchet

406-350-02R, R60 Single/Becket
406-350-02
R60 Single/Becket

406-350-04R, R60 Single/Becket-Cam
406-350-04
R60 Single/Becket-Cam

406-350-05R, R60 Cheek, Clockwise
406-350-05
R60 Cheek, Clockwise

406-350-06R, R60 Cheek, Anti-Clockwise
406-350-06
R60 Cheek, Anti-Clockwise

406-350-09R, R60 Triple/Becket-Cam
406-350-09
R60 Triple/Becket-Cam

406-360-01R, R60+ Single, ratchet
406-360-01
R60+ Single, ratchet
