OWS SLIDER FOR WEBBING
Outer Wheel Sliders (OWS) for webbing applications. Our five different designs fit the obsolete Seldén E-sections and D-sections as well as masts from other manufacturers.

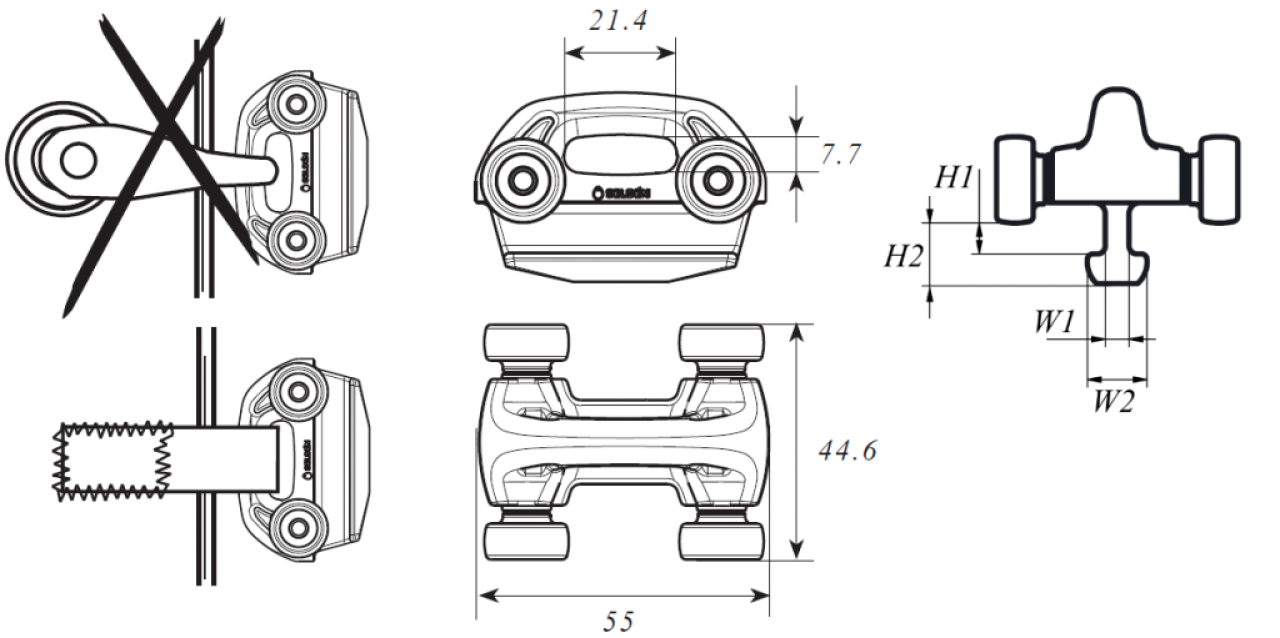

| Item No | Model | H1 (mm) | H2 (mm) | W1 (mm) | W2 (mm) | FitsLuffGroove (mm) | BreakingLoad (kN) |
|---|---|---|---|---|---|---|---|
| webbing | 5.75 | 11.20 | 4.30 | 11.00 | 5.50 | 5.00 | |
| webbing | 2.50 | 6.20 | 6.70 | 16.50 | 10.00 | 5.00 | |
| webbing | 5.40 | 9.80 | 10.50 | 20.70 | 12.00 | 5.00 | |
| webbing | 4.00 | 10.70 | 4.30 | 11.00 | 5.50 | 5.00 | |
| webbing | 2.90 | 6.20 | 6.70 | 14.40 | 10.00 | 5.00 |
